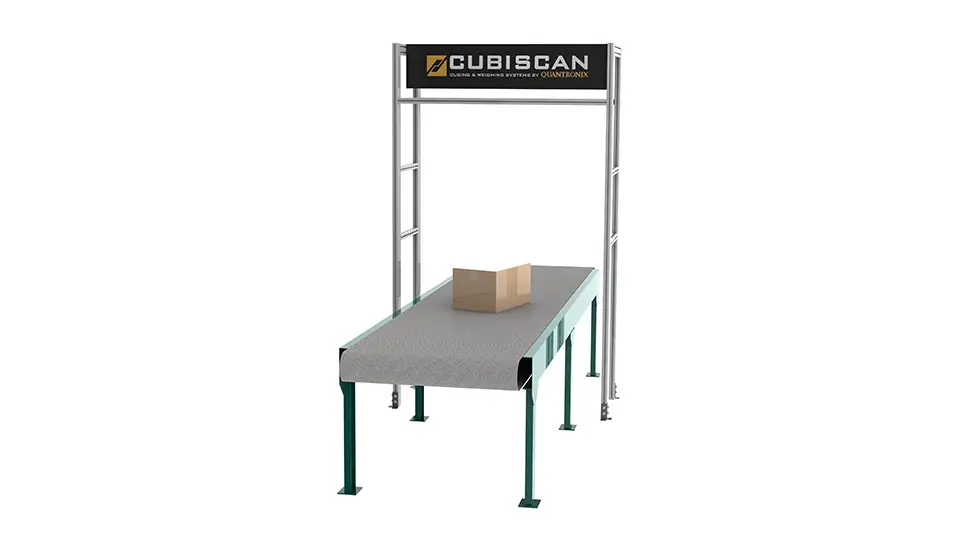

The CubiScan 225 delivers a powerful dimensioning solution for challenging applications such as on-demand box making and measuring large odd shaped items and boxes for distribution, packaging and warehousing applications. The merger of conveyor-enhanced measurement with 21st century automation results in higher degrees of precision, reduced packaging and shipping expenses, economized use of storage and enhanced cartonization capabilities. In addition to financial advantages, the CubiScan 225 benefits the environment by reducing packaging waste and minimizing transportation and fuel costs.

SUMMARY

The CubiScan 225 has a measurement capacity up to 24 x 24 x 60 inches with a resolution of 0.05 inches and a minimum required interval between each object of only six inches. There are also extended versions available that can measure up to a 96 inch length capacity. This in-line dimensioning system for irregular shapes also includes an integrated conveyer with a variable speed of 10 to 60 feet per minute. CubiScan’s proprietary software, Qbit™, delivers menu-driven operator controls, data storage/transfer and diagnostics, all with a handy touchscreen interface.

SPECIFICATIONS

Performance Specifications


Measurement Increment:

0.05in (1 mm)


Belt speed:

10 to 60 feet per minute (3 to 18 meters per minute)


Minimum interval (between objects):

6.0 in (150 mm)

Measurement Range

Length:

6 in (150 mm) to 60 in (1500 mm)

Width:

0.5 in (12 mm) to 24 in (600 mm)

Height:

0.2 in (4 mm) to 24 in (600 mm)

Length Increment:

6.0 in (150 mm) to 96.0 in (2400 mm)

Other

Measuring Sensor:

Infrared

Connectivity:

Serial (1), Ethernet (1), USB (1)

User Interface:

TFT LCD touch screen

Power Requirements:

110 – 240 VAC, 50 – 60 Hz

Operating Temperature:

32° – 104° F (0° – 40° C)

Humidity:

0 – 90%
